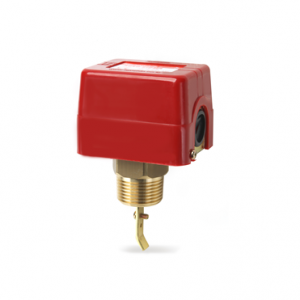

HFS-15 / 20 / 25
FEATURES
- The paddle type SPDT HFS series are designed to provide excellent performance where accuracy, reliability,
and rugged constructiuon are required in liquid flow lines carrying water for any fiuid neither harmful to
brass and prosphor bronze nor classified as a hazaardous fluids.
- They can be wired to close one circuit and open the other circuit when liquid flow either exceeds or drops
below the adjusted flow rate.
- The HFS series are recommended for liquid pressure and temperature as mentioned below and must not be
used on fluid bellow 0℃
- These series may be used on liquids with high salt or chlorine content but is not for use in hazardous atmospheres.
- Flow switches are designed for use only as operating controls.
- Since control failure can cause personal injury or property damage, users should use the monitoring system to
alert control failure or the safety equipment.
DIMENSION
|
MODEL
|
A
|
B
|
C
|
D
|
CONNECTION
|
L1
|
L2
|
L3
|
W
|
|
HFS-15
|
79
|
64
|
93
|
56
|
R 1/2"(PT 1/2")
|
50
|
43
|
-
|
28
|
|
HFS-20
|
79
|
64
|
93
|
56
|
R 3/4" (PT 3/4")
|
50
|
43
|
40
|
28
|
|
HFS-25
|
79
|
64
|
93
|
56
|
R 1" (PT 1")
|
89
|
59
|
35
|
28
|
SPECIFICATION
|
OPERATING PRESSURE
|
1.0 MPa (10bar)
|
|
WITHSTANDING PRESSURE
|
1.75 MPa (17.5bar)
|
|
INSULATION RESISTANCE
|
Over 100Ω (DC 500Vm)
|
|
WITHSTANDING VOLTAGE
|
AC 1500V / Min
|
|
CONTACT POINT LIFE
|
1000K Cycle
|
|
BELLOWS LIFE
|
500K Cycle
|
|
TEMPERATURE of FLUID
|
Max. 100℃ (212 ℉)
|
ELECTRICAL FUNCTION
|
RATED AMPS. (A)
|
VOLTAGE
|
RESISTANCE
|
LAMP LOAD
|
MOTOR LOAD
|
|
AC
|
AC 125V
|
5A
|
44A
|
5A
|
|
AC 250V
|
2.5A
|
22A
|
2.5A
|
|
DC
|
DC 115V
|
0.3A
|
-
|
-
|
|
DC 230V
|
0.15A
|
-
|
-
|
INDIVIDUAL SPECIFICATION
|
BASIC OPTIONAL
|
CLASSIFICATION
|
FLOW CONTROL RANGE (LPM)
|
|
PIPE DIAMETER
mm (inch)
|
PADDLE
|
MINIMUM
|
MAXIMUM
|
|
ON-FLOW
|
OFF-FLOW
|
ON-FLOW
|
OFF-FLOW
|
|
STANDARD
|
25.4 (1")
|
|
15
|
8
|
45
|
41
|
|
31.7 (1"1/4)
|
1
|
26
|
13
|
75
|
68
|
|
38.1 (1"1/2)
|
|
29
|
20
|
105
|
94
|
|
50.8 (2")
|
2
|
34
|
17
|
120
|
105
|
|
63.5 (2"1/2)
|
|
60
|
34
|
210
|
188
|
|
76.2 (3")
|
3
|
68
|
30
|
288
|
275
|
|
101.6 (4")
|
|
128
|
65
|
412
|
360
|
|
121.0 (5")
|
|
225
|
113
|
750
|
652
|
|
152.4 (6")
|
|
346
|
172
|
1125
|
975
|
* Specification of the products are subject to change without prior notice for quality improvement.
