PROOF OF CLOSURE SWITCH



HGT 2000







DIMENSION




The length of the detection is based on the combined model.





DIMENSION

 MODEL

 Overall (mm)

 Weight(Kg)

 Connection

 A

 D

 HGT 20000

62

44.5

42.5

104

52.5

4.6

Rp 1/4"





GENERAL SPECIFICATION

 Working gas

 LNG(Town gas), LPG, Air, Flue gas, Non-aggressive gas

 Ambient temperature

 -15 ∼ 60 ℃

 Protection grade

 IP 54

5- Dust protected

4- Protection against splashing water





MATERIALS

 Housing base

 Nylon W6

 Other parts

 HNBR, Brass etc.





COMBINED EXAMPLES




HDG Series combination






HGDS Series combination



■ TECHNICAL DESCRIPTION

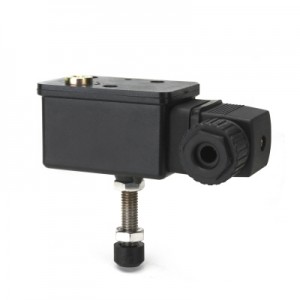

The HGT is a mechanically activated switch for monitoring the position of the valve plate.

The product can be mounted to the following products.

      · HDG / HDG-EX

      · HDGS / HDGS-EX

      · HGS / HGSO

      · HGD

      · HGRB

The compact, robust and functional design permits a simple and quick installation, and it is essentially easy       maintenance .

All components are designed to withstand mechanical and chemical stresses present in a typical installation.

■ ATTENTION

All installation/maintenance work must be carried out by skilled staff. Always check that the system is gas-tight after installation.

Failure to follow this manual can result in dangerous situations or damage to the product.



■ INSTALLATION

1. Warning

  - For proper and safe operation and long service life of the valve, consider the following recommendations

    of the valve during the design of the system when the valve is installed

      · Rated voltage and current

      · The degree of protection vessel

      · Dimensions of tolerance parallel thread

      · Attachment Method

      · The environment

      · Pull method

      · Location inlet section

      · Using leased lines

  - Shut off the air/gas supply at the main manual

    shut-off valve and disconnect electrical power to the valve before proceeding with installation or servicing.

  - Before installation, ake sure that the pipeline is free from impurities and vibration-free.

  - Make sure all gaskets are used properly.

  - Please be sure protective measures to prevent easy access to the facilities.

  - If you do not use the Rated voltage products can cause serious malfunction.

  - After installation, function and leaking tests must be carried out.

  - Perform maintenance must be done at least once a year.



2. Installation Location

  - Ensure that installing area is protected from rain or moisture and sunlight.
