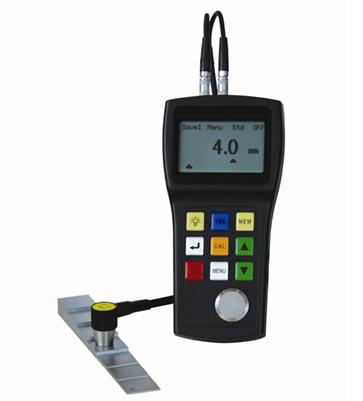

TM200/TM210 ULTRASONIC THICKNESS GAUGE
FEATURES:
AUTOMATIC SELF CALIBRATION
COUPLANT INDICATOR
AUTOMATIC POWER OFF DEVICE
HIGH-LOW LIMIT ALARM
LCD BRIGHTNESS ADJUST
LOW BATTERY INDICATOR
TECHNICAL SPECIFICATIONS:
|
|
TM200
|
TM210
|
|
Display Resolution
|
0.1mm (or 0.01 inch)
|
0.1mm/0.01mm
or 0.01 inch /0.001inch
|
|
Accuracy
|
±(1%H +0.1)mm
|
±(0.5%H + 0.01)mm
|
|
Measuring Range
|
0.8 - 300.0 mm depending on the probes (1.0 - 200.0 mm with Standard Probe within the package)
|
|
Display Frequency
|
4Hz
|
|
Memory
|
Store up to 500 test values
|
|
Sound velocity
|
1000-9999 m/s (0.0393-0.3936 inch/μs)
|
|
Display Type
|
4 digital LCD with advanced backlight
|
|
Power Supply
|
2 pcs. 1.5v AA standard Batteries
|
|
Working temperature
|
-0 oC ~ +50 oC
|
|
Dimension
|
149 mm X 73 mm X 32 mm
|
|
Weight
|
168g (main unit); 30g (standard probe)
|
Standard Delivery :
Main Processor with built-in Calibration block (4.0mm)
Standard Probe – PT-12 (5 MHz)
Coupling Paste
Operation Manual
Batteries – 2 pcs. 1.5v AA Type batteries
Carrying case
Probes Specification:
|
Probes
|
Frequency
|
Diameter
|
Measuring Range (steel)
|
Application
|
|
PT-12
|
5 MHz
|
12mm
|
1.0-200mm
|
Standard Probe
|
|
PT-08
|
5 MHz
|
10mm
|
0.8-100mm
|
Standard Probe
|
|
PT-06
|
7.5 MHz
|
7.6mm
|
0.8-30.0mm
|
Miniature Probe
|
|
ZT-12
|
2 MHz
|
16.2mm
|
4.0-300mm
|
Lowe frequency Probe
|
|
PT-04
PT-04-2
|
10 MHz
10MHz
|
4mm
2mm
|
0.8-20.0mm
0.8-12.0mm
|
Minisize Probe
Minisize Probe
|
|
GT-13
|
5 MHz
|
14mm
|
4.0-80.0mm
|
High Temperature probe
|
