Explosiion Proof Solenoid valve for Gas

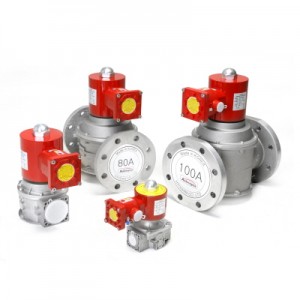

EXPLOSION PROOF GAS SOLENOID VALVE
(Normally Closed, The Fast Opening and Fast Closing Type)



HDG-EX 2015 / 2025 / 2040 / 2050

HDG-EX 2050F / 2065F / 2080F / 2100F



 0112adb60cd1b919fcef8939b59f24bb_1472463

According to LVD 2006/95/EC

test required IEC 60730-1 (4th Edi.): 2010 / IEC 60730-2-6 (2th Edi.): 2008

 0112adb60cd1b919fcef8939b59f24bb_1472463







Certification Criteria

       : Protective equipment compulsory safety certification Notice

           (Ministry of Employment and Labor Notice 2013-54)

Certification Number : 15-GA2BO-0771X / 0772X

Certification ratings : Ex d mb IIC T4 IP67

 HDG-EX 2015 / 2025






HDG-EX 2040 / 2050

 48460ebd4287012d04c7af1758d1ffd3_1472553

HDG-EX 2050F / 2065F / 2080F / 2100F

  48460ebd4287012d04c7af1758d1ffd3_1472553

48460ebd4287012d04c7af1758d1ffd3_1472553






DIMENSION & TECHNICAL SPECIFICATION

- The Directly Fast Opening and Fast Closing Type -

 MODEL

 Overall  (mm)

Weight
(Kg)

Connection

Max. Operating Pressure
(mbar)

Powwer Consumption

 A

B

 HDG-EX 2015 (15A)

 88

  110

 150

 175

 168

 3.0

Rp 1/2"

 360

20VA

  HDG-EX 2025 (25A)

 88

 110

 150

 175

 168

 -

 3.0

 Rp 1"

 360

 30VA

  HDG-EX 2040 (40A)

 140

 160

 221

 262

 207

 -

 8.0

 Rp 1" 1/2

 360

 190VA / 53VA*

  HDG-EX 2050 (50A)

 140

 160

 221

 267

 207

 -

 8.0

 Rp 2"

 360

190VA / 53VA*

 HDG-EX 2050F (50A)

 145

 227

 221

 297

 207

 4x18

 8.0

 DN 50

 200

 190VA / 53VA*

  HDG-EX 2065F (65A)

 187

 270

 223

 313

 207

 4x18

 14.5

 DN 65

 200

 190VA / 53VA*

  HDG-EX 2080F (80A)

 198

 313

 225

 353

 207

 8x18

 14.5

 DN 80

  200

190VA / 53VA*

  HDG-EX 2100F (100A)

 198

 316

 282

 390

 207

 8x18

 16

DN 100

 200

 190VA / 53VA*

 *Starting / Working



GENERAL SPECIFICATION

 Working gas

 LNG(Town gas), LPG, Air, Flue gas, Non-aggressive gas

 Working voltage

 AC 220V

 Ambient temperature

 -15 ∼ 60 ℃

 Voltage tolerance

 -15 ~ 10 %

 Closing time

 < 1 second

 Opening time

 < 1 second

 Protection grade

 IP 67

6- Dust tight, No ingress of dust

7- Protection against the effect of

    “temporary” immersion between 15cm~1m.





MATERIALS

 Housing base

 Aluminium diecast, Brass

 Coil housing

 Iron

 Coil

 enameled copper wires

 Disk sheet

 HNBR

 Core

 Pure Iron











■ TECHNICAL DESCRIPTION

  - HDG Series solenoid valves are fast opening single-stage valves directly act as

     the power held within one second, normally closed.

  - If the power supply is shut off, the valve rapidly closes, interrupting the flow of gas. (within 1 second)

  - This is suitable for air or gas blocking and releasing controls, required in gas power burners,

     atmospheric gas boilers, industrial kilns and other gas consuming appliances.

  SAVING ENERGY

            : HDG-EX 2040 / 2050 / 2050F / 2065F / 2080F / 2100F

              · The starting power is being supplied to the solenoid coil and after 20 seconds it is down to 40%

                        power to operate the solenoid coil, saving electricity.

              · Keeping the temperature of the coil below 55 ℃ can prolong the lifetime of the product.
              · If problems occur in the operation of the solenoid coil it must be immediately exchanged.



■ ATTENTION

All installation/maintenance work must be carried out by skilled staff. Always check that the system is

gas-tight after installation.

Failure to follow this manual can result in dangerous situations or damage to the product.





■ INSTALLATION

1. Warning

  - For proper and safe operation and long service life of the valve, consider the following recommendations of the valve

           during the design of the system when the valve is installed

          · Rated voltage and current

          · The degree of protection vessel

          · Dimensions of tolerance parallel thread

          · Attachment Method

          · The environment

          · Pull method

          · Location inlet section

          · Using leased lines

  - Shut off the air/gas supply at the main manual shut-off valve and disconnect electrical power to the valve

            before proceeding with installation or servicing.

  - Before installation, ake sure that the pipeline is free from impurities and vibration-free.

  - Solenoid surface may be hot. Do not touch it with bare hands.

  - The filter must be installed upstream of the solenoid valve for proper operation.

  - Avoid excessive quantities of sealing agent which could enter in the valve.

  - Use proper tools only and avoid overtightening.

  - Make sure all gaskets are used properly.

  - Please be sure protective measures to prevent easy access to the facilities.

  - If you do not use the Rated voltage products can cause serious malfunction.

  - After installation, function and leaking tests must be carried out.

  - Perform maintenance must be done at least once a year.



2. Installation Location

  - Valve may be mounted with coil in horizontal or vertical position, not upside down.

  - A gas filter should be always installed upstream the valve.

  - Ensure that installing area is protected from rain or moisture and sunlight.

  - It may cause the heat to the coil according to the installation environment.
