Explosion proof gas solenoid valve (Pilot type)

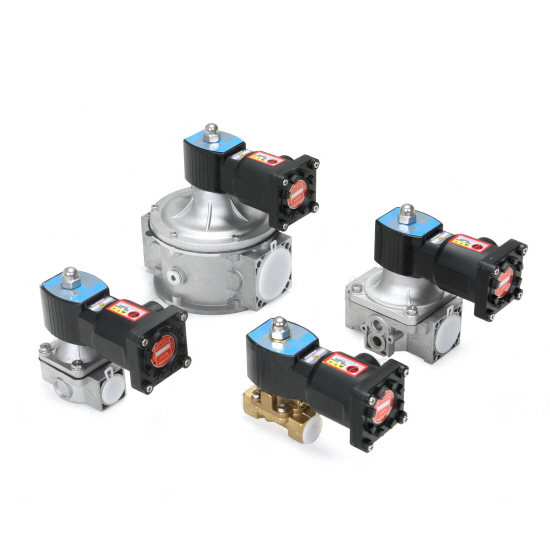

EXPLOSION PROOF GAS SOLENOID VALVE
(PILOT Type)



HPG-EX 2010 / 2015 / 2020 / 2025 / 2040

HPGO-EX 2010 / 2015 / 2020 / 2025



 0112adb60cd1b919fcef8939b59f24bb_1472463

Certification Criteria

        : Protective equipment compulsory safety certification Notice

             (Ministry of Employment and Labor Notice 2013-54)

Certification Number : 15-GA2BO-0257X

Certification ratings : Ex d mb IIC T4 IP67

HPG-EX 2010 / 2015

HPGO-EX 2010 / 2015




 HPG-EX 2020 / 2025

HPGO-EX 2020 / 2025




HPG-EX 2040










DIMENSION & TECHNICAL SPECIFICATION

- Pilot Solenoid Valve -

 MODEL

 Overall  (mm)

Weight (kg)

 Connection

 Powwer Consumption (VA)

 A

 B

 C

 D

 E

 F

 Normally

 closed



HPG-EX 2010 (10A)

 56

84

119

137

143

160

1.6

Rp 3/8"

20

HPG-EX 2015 (15A)

 56

84

119

137

143

160

1.6

Rp 1/2"

20

HPG-EX 2020 (20A)

 88

110

129

155

143

172

1.6

 Rp 3/4"

20

HPG-EX 2025 (25A)

 88

110

129

155

143

172

2.5

 Rp 1"

20

HPG-EX 2040 (40A)

 140

160

153

190

143

198

2.8

 Rp 1"1/2

20



 Normally

open

HPGO-EX 2015 (10A)

 56

84

119

137

143

160

1.6

 Rp 3/8"

20

HPGO-EX 2015 (15A)

 56

84

119

137

143

160

1.6

 Rp 1/2"

20

HPGO-EX 2020 (20A)

 88

110

129

155

143

172

1.6

 Rp 3/4"

20

HPGO-EX 2025 (25A)

 88

110

129

155

143

172

2.5

 Rp 1"

20





GENERAL SPECIFICATION

 Working gas

 LNG(Town gas), LPG, Air, Flue gas, Non-aggressive gas

 Working voltage

 AC 220V

 Ambient temperature

 -15 ∼ 60 ℃

 Voltage tolerance

 -15 ~ 10 %

 Max. Operating Pressure

 500mbar

 Closing time

 < 1 second

 Opening time

 < 1 second

 Protection grade

 IP 67

   6- Dust tight, No ingress of dust

   7- Protection against the effect of “temporary” immersion

            between 15cm~1m.





MATERIALS

 Housing base

 Aluminium diecast

 Coil housing

 Iron

 Coil

 enameled copper wires

 Disk sheet

 HNBR

 Core

 Pure Iron





■ TECHNICAL DESCRIPTION

HPG-EX series solenoid valve is Pilot - Operated Relief Valve using a diaphragm.





■ AVIDANCE THE USE

  - Using a viscous fluid

  - Using fluid containing impurities

  - If corrosives
