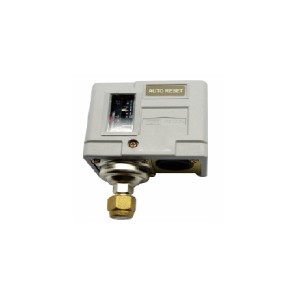

HS - 203 / 206 / 210 / 220 / 230
HS - 306 / 306M / 606 / 606M
FEATURES
- Use for air, water, fluorinated refrigerants (Allowable Fluid Temp : -10~120℃)
- micro-switch ensures reliable switching.
- Mounting bracket supplied as standard.
- SPDT contact mechanism
APPLICATIONS
- Compressor, Firefighting equipment, Pumps, Boilers, Cooling & Heating machine and various Industrial hydraulic machinery, etc
|
|
Pressure rise
|
|
|
Pressure rise
|
RATED VOLTAGE
|
RATED VOLTAGE(V)
|
POWER FACTOR
|
AC
|
DC
|
|
RATED CURRENT(AMPS)
|
125
|
250
|
450
|
25
|
125
|
|
NON-INDUCTIVE CURRENT
|
1
|
10
|
5
|
2
|
5
|
0.5
|
|
INDUCTIVE CURRENT
|
RUNNING CURRENT
|
0.75
|
8.5
|
4.5
|
1
|
2
|
0.2
|
|
LOCKED ROTER CURRENT
|
0.45
|
40
|
20
|
10
|
10
|
5
|
PRESSURE CONNECTIONS
STANDARD SPECIFICATION
|
TYPE
|
MODEL
|
PRESSURE
RANGE
|
DIFFERENTIAL
PRESSURE RANGE
|
FACTORY
SETTING
|
BELLOWS MAX.
PRESSURE
|
WEIGHT
(kg)
|
|
BAR
|
PSIG
|
BAR
|
PSIG
|
BAR
|
PSIG
|
BAR
|
PSIG
|
|
SINGLE TYPE /
AUTO TYPE
|
HS- 203
|
-0.5 to 3
|
20 to 43
|
0.35 to 2
|
5 to 30
|
0.5 / 1.5
|
7 / 21
|
11
|
160
|
0.42 |
|
HS-206
|
-0.5 to 6
|
20 to 87
|
0.6 to 4
|
9 to 58
|
1.5 / 2.5
|
29 / 43
|
16.5
|
240
|
|
HS-210
|
1 to 10
|
15 to 145
|
1 to 3
|
15 to 43
|
4 / 6
|
58 / 87
|
16.5
|
240
|
|
HS-220
|
5 to 20
|
73 to 290
|
3 to 5
|
43 to 72
|
12 / 15
|
174 /2 17
|
40
|
580
|
|
HS-230
|
5 to 30
|
73 to 435
|
3 to 10
|
43 to 145
|
15 / 20
|
217 / 290
|
40
|
580
|
|
DUAL
TYPE
|
HS-306
|
L/S
|
-50cmHg
|
6
|
0.6
|
4
|
2
|
3
|
16.5
|
-
|
0.61
|
|
H/S
|
8
|
30
|
Approx.4 fixed
|
16
|
20
|
40
|
-
|
|
HS-306M
|
L/S
|
-50cmHg
|
6
|
0.6
|
4
|
2
|
3
|
16.5
|
-
|
|
H/S
|
8
|
30
|
Manual Reset
|
16
|
Manual Reset
|
40
|
-
|
|
HS-606
|
L/S
|
-50cmHg
|
6
|
0.6
|
4
|
2
|
3
|
16.5
|
-
|
|
H/S
|
8
|
30
|
Approx.4 fixed
|
16
|
20
|
40
|
-
|
|
HS-606M
|
L/S
|
-50cmHg
|
6
|
0.6
|
4
|
2
|
3
|
16.5
|
-
|
|
H/S
|
8
|
