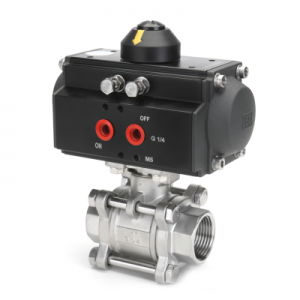

HAD-103BV / 153BV / 203BV / 253BV / 323BV / 403BV / 503BV
APPLICATIONS
- Piping for water or steam, Industrial machinery piping, Sterilizers, Boilers, Air conditioners, Lubricators,
Medical equipments, Vacuum packing, Automation equipment, Specially equipped Vehicles
DIMENSION
|
MODEL
|
MOUNTED ACTUATOR
|
L
|
H1
|
H2
|
A
|
B
|
PORT SIZE
|
|
HAD-103BV
|
HAD-42
|
64
|
39
|
75
|
115
|
57
|
10 A
|
|
HAD-153BV
|
HAD-42
|
72
|
43
|
75
|
115
|
57
|
15 A
|
|
HAD-203BV
|
HAD-42
|
80
|
45
|
75
|
115
|
57
|
20 A
|
|
HAD-253BV
|
HAD-50
|
85
|
56
|
89
|
150
|
72
|
25 A
|
|
HAD-323BV
|
HAD-50
|
105
|
59
|
89
|
150
|
72
|
32 A
|
|
HAD-403BV
|
HAD-63
|
113
|
71
|
115
|
175
|
80.5
|
40 A
|
|
HAD-503BV
|
HAD-63
|
132
|
78
|
115
|
175
|
80.5
|
50 A
|
MATERIAL
|
NO
|
DESIGNATION
|
MATERIAL
|
Qty
|
|
1
|
BALL VALVE
|
STS304 / STS316
|
1
|
|
2
|
BOLT
|
STS304
|
4
|
|
3
|
WASHER
|
STS204
|
4
|
|
4
|
ACTUATOR
|
-
|
1
|
SPECIFICATIONS TABLE
|
DIVISION
|
BASIC SPECIFICATION
|
OPTION
|
|
PORT SIZE
|
8A ~ 65A
|
|
WORKING PRESSURE
|
KS 1.0 MPa
|
KS 2.0 MPa
|
|
CONNECTION WAY
|
PT SCREW
|
-
|
|
BODY MATERIAL
|
SUS 304
|
SUS316(L), PVC
|
|
SEAT MATERIAL
|
PTFE
|
CARBON / RTFE
|
|
FLUID TEMPERATURE
|
0℃ ~ 100℃
|
140℃
|
|
ACTUATOR
|
DOUBLE ACTING
|
SINGLE ACTING
|
|
ADDITIONAL OPTIONS
|
SOLENOID V/V, LIMIT S/W BOX, SILENCER, FILTER+REGULATOR, SPEED CONTROL
|
* Specification of the products are subject to change without prior notice for quality improvement.
