Engine RPM Sensor Based
Products: Engine RPM Sensor Based on Vibration and Noise Gasboard 8110
Category: Automobile Emission Gas Analyz

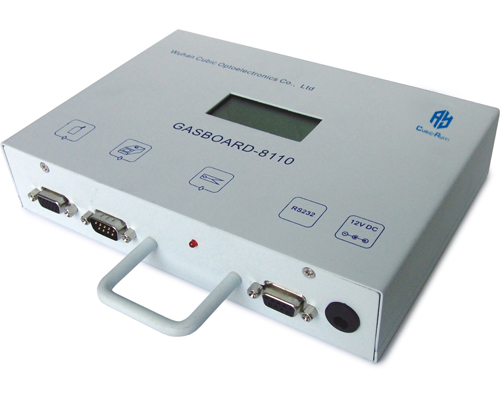

Image:


Introductions

Engine RPM Sensor Based on Vibration and Noise Gasboard—8110 adopts advanced design of hardware together with integrated software analysis technology. Petrol engine or diesel engine‘s RPM is obtained through analysis of vibration and audio spectrum signal. It is easy to operate, accurate and reliable


 Applications

Gasboard—8110 Engine RPM Sensor Based on Vibration and Noise adopts advanced design of hardware together with integrated software analysis technology. Measure Petrol engine or diesel engine‘s RPM through analysis of vibration and audio spectrum signal. It is easy to operate, accurate and reliable.

Specifications

Model Gasboard-8110
Engine type 4-sroke—diesel/gasoline
Measuring range Gasoline: 450~8000 rpm
Diesel: 450~6000 rpm
Signal output serial output,
analog voltage signal output;
TTL signal pulse output;
Induced pulse -analog ignition signal
Power supply 9~28 V DC, <350mA
Working temperature 5℃~45℃
Operating humidity 30 %~90 % RH
Dimension 200*40*140 mm
Weight < 2Kg




I/O Interface


Features

•   Applied to engine types of 4-sroke-diesel/gasoline engines
•   Measurement is on the basis of vibration and audio spectrum analysis
•   Supports serial output, analog voltage signal output, TTL signal pulse output, induced pulse-analog ignition signal output.
•   Can be connected to other emission analyzers or opacity meters through correspondent output
•   Smart portable design and easy operation

Accessories

Parts Pictures Descriptions
RPM measurement device    Gasboard—8110
RPM measurement device
Magnetic sensor RPM sensor

Cigar lighter power supply(optional)

   power supply from auto battery
RS232 cable    To connect computer

Gas analyzer connecting cable
(Optional)
   Gasboard—4(5)020 or Gasboard—6010 only
Power adapter(optional)



 (AC220V input)
