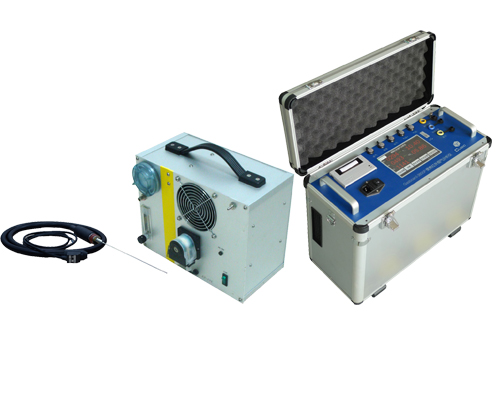

Portable infrared flue gas analyzer 3800p
Products: Portable Infrared Flue Gas Analyzer—Gasboard 3800P
Category: Flue Gas Analyzer

 Introduction
    It is portable type and used to measure concentration of SO2, NO, CO, CO2 and O2 from stack or boiler emission gases, in which SO2, NO, CO and CO2 are measured by micro-flow infrared sensors and O2 by electrochemical sensor, with optional gas temperature, pressure, velocity etc, calculating combustion efficiency, lambda, etc.
Application
   Combustion and emission control research or certification of Continuous Emission Monitoring System (CEMS), combustion efficiency monitoring for various industrial furnaces or refuse incinerator and boiler.

 Specifications


Measurement: SO2, NO, CO, CO2, O2

Technology: SO2, NO, CO, CO2 (Micro-flow NDIR)

          O2 (Electrochemical)

Range: SO2: 0-2000ppm

       NO: 0-2000ppm

       CO: 0-5000ppm

       CO2: 0-25%

       O2: 0-25%

(Note: measurement range can be customized by the requirement.)

Resolution: SO2, NO, CO: 1ppm

          CO2, O2: 0.01%

Precision: SO2, NO, CO, CO2 ≤±2%

         O2 ≤±3%

Repeatability: SO2, NO, CO, CO2O2 ≤1%

Zero/Span drift: SO2, NO, CO, CO2 ≤±2%

              O2 ≤±3%

Response time (T90): <10s (NDIR)

Warm-up time: 30 minutes

Communication Interface: RS232

Work temperature: 0-50℃

Relative humidity: 5-85%

Ambient pressure: 86-108kPa

Power supply: AC 220V 50Hz±1Hz



Specification of temperature measured:

Parameter

Method

Thermistor

Resolution

Precision

Flue gas temperature

Thermocouple

-10—600℃

1℃

±2℃

Ambient air temperature

Thermistor

-10—100℃

1℃

±1℃



Specification of pressure measured:

Parameter

Method

Range

Resolution

Dynamic Pressure

Silicon Pressure Chip

-50hPa—50hPa

1Pa

Ambient air pressure

Silicon Pressure Chip

70kPa—120kPa

0.1kPa



Gas analyzer features:

1.      Innovative micro-flow NDIR technology.

2.      Measure SO2, NO,CO,CO2,O2 and optional temperature, pressure and flow.

3.      Less interference of H2O for SO2 and NO measurement.

4.      Built-in zero pump and auto zero calibration with fresh air.

5.      Optional printer.

6.      Calculation of Lambda and combustion efficiency.

7.      Touch screen.

8.      USB output.



Gas conditioning system features:

1.Efficient peltier dehumidifiers for humidity measurement of low concentrations. 2.PID temperature control.

3.Needle valve flow control.

4.Built-in sampling pump and peristaltic pump.

Features

1.Integrate heated sampling probe and sampling hose.

2.Built-in heated filter, prevent sampling loss.

3.Max working temperature 200℃.

4.  Smart design, safe and reliable.

5.  Filter element: 2 um

6.  Length: 3m

7.  Power supply: 220V

8.  Power consumption: 330W

9.  environmental temperature: -40℃—140℃
