Gas Dual Solenoid Valve

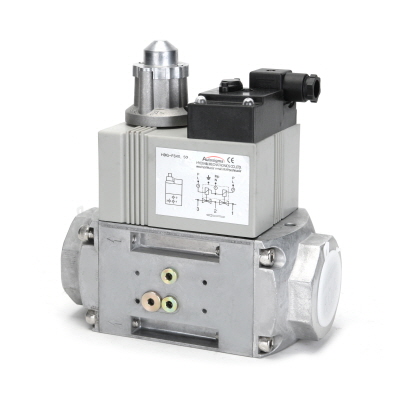

GAS DUAL SOLENOID VALVE



HGD 2040 / 2050









HGD 2040



 HGD 2050






Inside











DIMENSION & TECHNICAL SPECIFICATION

 MODEL

 Overall (mm)

Weight
(Kg)

Connection

 A

B

 HGD 2040

 124

  204

 43

  115

  218

 98

 4.6

  DN 40

 HGD 2050

 124

 204

43

 152

  257

98

 5.6

 DN 50





GENERAL SPECIFICATION

 Working gas

 LNG(Town gas), LPG, Air, Flue gas, Non-aggressive gas

 Working voltage

 AC 220V

 Ambient temperature

 -15 ∼ 60 ℃

 voltage tolerance

 -15 ~ 10 %

 Max. Operating Pressure

 500 mbar

 Protection grade

 IP 54

5- Dust protected

4- Protection against splashing water





MATERIALS

 Housing base

 Aluminium diecast,

 Coil housing

 Iron

 Coil

 enameled copper wires

 Disk sheet

 HNBR

 Core

 Pure Iron

 Filter

 Nonwoven polypropylene fabric (≤ 50μm)





■ TECHNICAL DESCRIPTION

  - HGD series solenoid Valve is a combination of two normally closed safety shutoff

     valves in an only compact and versatile valve housing.

  - This product is combined with primary Fast Opening solenoid valve and secondary Slow Opening solenoid valve.

  - Directly mounting the following accessories creates a compact valve train without additional piping.

      · Pressure regulator

      · High and low gas pressure switches

      · Vent line adapter

      · Interlock switch

  - This product is suitable for air or gas blocking and releasing controls, required in gas power burners,

     atmospheric gas boiler, industrial kilns and others gas consuming appliances.





■ ATTENTION

All installation/maintenance work must be carried out by skilled staff. Always check that the system is gas-tight after installation.

Failure to follow this manual can result in dangerous situations or damage to the product.





■ INSTALLATION

1. Warning

  - For proper and safe operation and long service life of the valve, consider the following

    recommendations  of the valve during the design of the system when the valve is installed.

      · Rated voltage and current

      · The degree of protection vessel

      · Dimensions of tolerance parallel thread

      · Attachment Method

      · The environment

      · Pull method

      · Location inlet section

      · Using leased lines

  - Shut off the air/gas supply at the main manual

    shut-off valve and disconnect electrical power to the valve before proceeding with installation or servicing.

  - Before installation, ake sure that the pipeline is free from impurities and vibration-free.

  - Solenoid surface may be hot. Do not touch it with bare hands.

  - The filter must be installed upstream of the solenoid valve for proper operation.

  - Avoid excessive quantities of sealing agent which could enter in the valve.

  - Use proper tools only and avoid overtightening.

  - Make sure all gaskets are used properly.

  - Please be sure protective measures to prevent easy access to the facilities.

  - If you do not use the Rated voltage products can cause serious malfunction.

  - After installation, function and leaking tests must be carried out.

  - Perform maintenance must be done at least once a year.





2. Installation Location

  - Ensure that installing area is protected from rain or moisture and sunlight.

  - It may cause the heat to the coil according to the installation environment.

    Don’t install the valve in a position close to the wall or another device.





■ Standards and specifications of this product are subject to change without prior notice for improved performance.
