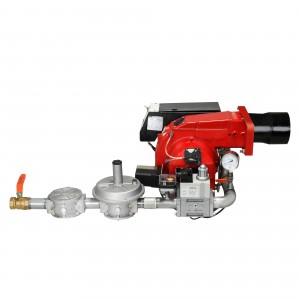

Gas Equipment Arrangement

GAS EQUIPMENT ARRANGEMENT








CAUTIONS IN INSTALLING A SOLENOID VALVE FOR GAS





■ ATTENTION

All installation/maintenance work must be carried out by skilled staff. Always check that the system is gas-tight after installation.

Failure to follow this manual can result in dangerous situations or damage to the product.





■ INSTALLATION

1. Warning

  - For proper and safe operation and long service life of the valve, consider the following recommendations

    of the valve during the design of the system when the valve is installed

      · Rated voltage and current

      · The degree of protection vessel

      · Dimensions of tolerance parallel thread

      · Attachment Method

      · The environment

      · Pull method

      · Location inlet section

      · Using leased lines

  - Shut off the air/gas supply at the main manual

    shut-off valve and disconnect electrical power to the valve before proceeding with installation or servicing.

  - Before installation, ake sure that the pipeline is free from impurities and vibration-free.

  - Solenoid surface may be hot. Do not touch it with bare hands.

  - The filter must be installed upstream of the solenoid valve for proper operation.

  - Avoid excessive quantities of sealing agent which could enter in the valve.

  - Use proper tools only and avoid overtightening.

  - Make sure all gaskets are used properly.

  - Please be sure protective measures to prevent easy access to the facilities.

  - If you do not use the Rated voltage products can cause serious malfunction.

  - After installation, function and leaking tests must be carried out.

  - Perform maintenance must be done at least once a year.



2. Installation Location

  - Valve may be mounted with coil in horizontal or vertical position, not upside down.

  - A gas filter should be always installed upstream the valve.

  - Ensure that installing area is protected from rain or moisture and sunlight

   - It may cause the heat to the coil according to the installation environment.

     Don’t install the valve in a position close to the wall or another device.





■ Standards and specifications of this product are subject to change without prior notice for improved performance.
