Gas Solenoid Butterfly Valve

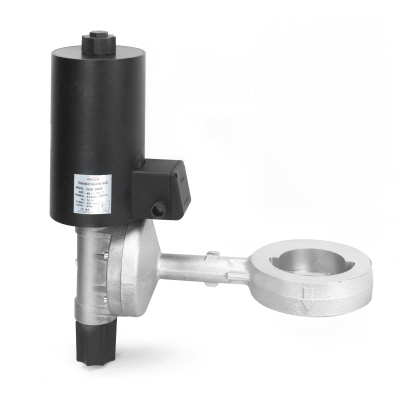

GAS SOLENOID BUTTERFLY VALVE



HGB 2040 / 2050 / 2065 / 2080 / 2100 / 2150

HGB-EX 2040 / 2050 / 2065 / 2080 / 2100 / 2150













General Type










Mounted Explosion-coil Type











 MODEL

 Overall  (mm)

 Connection

 Powwer Consumption

Remarks

 A

L1

H1

 HGB 2040 (40A)

36

130

90

92

358

234

352

306

DN 40

72VA / 20VA *

 -

 HGB 2050 (50A)

36

130

90

107

358

234

367

314

DN 50

72VA / 20VA *

 -

 HGB 2065 (65A)

36

130

90

127

358

234

387

324

DN 65

190VA53VA *

-

 HGB 2080 (80A)

42

130

90

142

358

234

402

331

DN 80

190VA /53VA *

 -

 HGB 2100 (100A)

42

130

90

160

358

234

420

340

DN 80

190VA /53VA *

-

 HGB 2150 (150A)

50

130

128

232

442

317

500

384

DN 150

190VA /53VA *

-

 HGB-EX 2040 (40A)

36

 -

 -

92

 -

 -

 -

306

DN 40

72 VA /20VA *

 Explosion proof

 HGB-EX 2050 (50A)

36

 -

 -

107

 -

 -

 -

314

DN 50

72VA / 20VA

 HGB-EX 2065 (65A)

36

 -

  -

127

 -

 -

 -

324

DN 65

190VA /53VA *

 HGB-EX 2080 (80A)

42

 -

  -

142

 -

 -

 -

331

DN 80

190VA /53VA *

 HGB-EX 2100 (100A)

42

 -

  -

160

 -

 -

 -

340

DN 100

190VA /53VA *

 HGB-EX 2150 (150A)

50

 -

 -

232

 -

 -

 -

384

DN 150

190VA /53VA *

* Starting / Working


GENERAL SPECIFICATION

 Working gas

 Air, Heated air, Flue gas

 Working voltage

 AC 220V

 Ambient temperature

 -15 ∼ 60 ℃

 Voltage tolerance

 -15 ~ 10%

 Maximum Inlet Pressure

 150 mbar

 Maximum Media Temperature

 400℃

 Opening / Closing time

 1 second

 Whether Explosion proof

 General Type IP 54

      5- Dust protected

      4- Protection against splashing water

 Explosion-Proof Type IP 67 (Explosion Proof)

      6- Dust tight, No ingress of dust

      7- Protection against the effect of

                  “temporary” immersion between 15cm~1m.



MATERIALS

 Coil housing

 Aluminium diecast

 Coil

 Enameled copper wires

 Butterfly valve Body

 Cast Iron

 Butterfly Disk

 SUS 304



■ TECHNICAL DESCRIPTION

Solenoid regulator HGB series is designed

Solenoid regulator HGB series is designed to control the flow of air or gas of high temperature (Max. 400 ℃) in the combustion process

and to achieve the right angle to the butterfly valve. The solenoid coil is designed to operate by converting the alternating current to the direct current and the operation is stable. Opening and closing is done more quickly than Electric Butterfly Valve. (Within 1 second)





■ ATTENTION

All installation/maintenance work must be carried out by skilled staff.

Always check that the system is gas-tight after installation.

Failure to follow this manual can result in dangerous situations or damage to the product.





■ INSTALLATION

1. Warning

     - Shut off the air/gas supply at the main manual shut-off valve and disconnect electrical power to the valve

                before proceeding with installation or servicing.

     - Before installation, ake sure that the pipeline is free from impurities and vibration-free.

     - Be careful to follow always the direction of gas flow indicated by the arrow on the governor.

     - Use proper tools only and avoid overtightening.

     - Make sure all gaskets are used properly.

     - Please be sure protective measures to prevent easy access to the facilities.

     - After installation, function and leaking tests must be carried out.

     - Perform maintenance must be done at least once a year.





2. Installation Location

     - A gas filter should be always installed upstream and Filter mesh must be made of metal.

     - Ensure that installing area is protected from rain or moisture and sunlight.
