Automobile Emission Gas Analyzer Gasboard-3000E
Products: Automobile Emission Gas Analyzer Gasboard-3000E
Category: Automobile Emission Gas Analyz

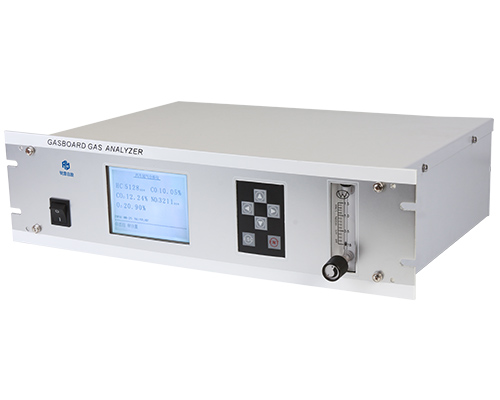

Image:



Introduction

Gasboard-3000E is an analyzer for control of exhaust gases from gasoline, petrol, alcohol or LPG engines. It is developed based on Micro-flow NDIR technology for the measuring CO, CO2, O2 and NO exhaust gases.

Applications
Gasboard-3000E is an analyzer for control of exhaust gases from gasoline, petrol, alcohol or LPG engines. It is developed based on Micro-flow NDIR technology for the measuring CO, CO2, O2 and NO exhaust gases.

Specifications

Model Gasboard-3000E
Measurements CO2, CO, HC, O2, NO gases, Lambda display
Technology NDIR for CO2, CO, HC, NO; ECD for O2
Measure Range Range Resolution  Error (which ever is greater)
rel. Abs.
CO2 0-16% 0.01% ±3%
16-18% 0.01% ±5%
CO 0-10% 0.01% ±3%
10-14% 0.01% ±5%
HC 0-2000ppm 1ppm ±3%
2001-5000ppm 1ppm ±5%
5001-9999ppm 1ppm ±10%
O2 0-25% 0.01% ±5%
NO 0-4000ppm 1ppm ±4%
4001-5000ppm 1ppm ±8%
Warm-up Time 10 minutes
Display LCD display
Response Time TD+T90:10 seconds (NDIR) ; ECD :30 seconds
Power 110V-220V±10%   50Hz ±1Hz
Operation Tem. 0-40℃
Dimension 260×180×360mm
Net weight 6kg
Flow rate 0.7-1.2L/min


     Features
•   Simultaneous measuring CO, CO2, NO, HC, O2, Lambda
•   Automatic calculation and display of Lambda and A/F
•   LCD screen and keypad buttons for easier setting and operation.
•   Selection of fuels: petro, LPG, Natural Gas, alcohol
•   Selection of C3-C6 factor
•   Automatic leakage test, blocking test and HC residue test of the sampling line
•   Automatic zeroing and air purge before each measurement circle
•   Optional various type RPM sensors
•   Optional oil temperature measurement probe.
•   Equipped with RS-232C digital serial interface and PC software.
•   Meet GB 18285 standards latest 00 class measuring accuracy.
