Touch panel type Gas Mixer
(Buffer tank specification)
Gas Mixer เครื่องผสมแก๊ส
［NEW］CUBEGM-Xα Series
Features

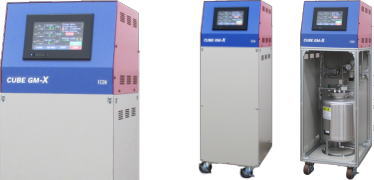

● [CUBEGM-Xα Seires (Buffer tank specification)] is an all-in-one unit which have Touch panel, PLC unit, Mass Flow Controller, Power supply, Valve, Check Valve Gas Mixer and Buffer tank.
● Program operation: Program operation is possible by setting the flow rate and time of each line.
● Alarm function: Alarm sound is notified if an error occurs by any upper / lower limit setting of each line flow rate.
● The pressure in the buffer tank is constantly monitored, and when the pressure falls below a fixed pressure, gas is automatically supplied to the buffer tank at the set mixing ratio. (Automatic stop and automatic restart pressure are fixed values, so please inquire in advance.)
● Simply connect the piping to the IN side and OUT side.
● Easy to move due to stoppered casters.
● [CUBEGM-Xα Series] is a device which supplies a mixed gas species of 2, 3, 4 to set up and control to any of the flow rate.
● Analog mass flow controller [1000 Series] is mounted as a standard feature.
● Mass flow controller, which flow control range is from 10SCCM to 50SLM, can be mounted as a standard. In other cases, please contact us.
● Can be reduced the cost when you use a Gas mixer than you purchase gas cylinders that has been prepared in the mixing ratio.
● It can be used for a wide range of applications such as analysis, environment, bio, packaging, medical, gas welding.
● Applicable gases : Inert gas. (For more information, please contact us)
Specification
|
Model |
CUBEGM-X Series |
|
Size |
CUBEGM-Xα2 : W350×D400×H1100(mm) ※Except protrusion / In the case of 10 L tank
CUBEGM-Xα3 : W430×D400×H1100(mm) ※Except protrusion / In the case of 10 L tank
CUBEGM-Xα4 : W510×D400×H1100(mm) ※Except protrusion / In the case of 10 L tank |
|
Input power |
AC100-240V |
|
Current consumption |
About 125VA ※In the case of 3 mass flow controllers equipped with |
|
Flow rate control range |
1 LINE : F.S.10SCCM～20SLM (However, the mixed gas flow rate must be less than 50 SLM) |
|
Flow rate control |
MFC : C1000 Series or FCST1000L Series |
|
Flow rate output signals |
0-5VDC |
|
INLET, OUTLET Valve |
Solenoid Valve |
|
Leak Integrity |
≦5×10-7Pa･m3/sec He |
|
Pressure resistance |
0.5MPa |
|
Wetted surface material |
SUS316, PTFE, Fluoro-Rubber
(FCST1000L Series : Magnetic stainless steel, Fluoro-Rubber or Chloroprene rubber) |
|
Standard fitting |
1/4in.SWL (equivalent) ※For other fitting, please contact us. |
|
Operating environment |
5-50℃, 30-80％RH (Scope of accuracy guarantee : 15-35℃) |
|
Accessory |
AC cable(2m), User's manual, Written guarantee |
● May be changed items depend on the number of mass flow controller. The other specifications, please contact us.
|
