Mass Flow Controller
ควบคุมอัตราการการไหลของแก๊ส
1000 Series
Features
● It is an analog model specializing the basic functions of the mass flow controller.
● Improved performance and reliability by basic functions pursuing original technology.
● Two type of Control Power Supply, Floor-standing "PA01" and Panel Mount "PA01P".
● Compact size.
● The suppression of Flow surge (overshoot) at the start (Requires more than 30 seconds of interval).
● Input & Output Signal ： Analog (0～5VDC)
● To control the mass flow controller, a control power supply and a signal cable are required.
|
 |
Product Catalog
|
C1005・1020/M1005・1020 (F.S.10SCCM～20SLM）
|
|
|
C1030・1050/M1030・1050 (F.S.30～50SLM)
C1100 (F.S.100LM)
|
|
Specification
|
Mass Flow Controller |
C1005 |
C1020 |
C1030/C1050 |
C1100 |
|
Mass Flow Meter |
M1005 |
M1020 |
M1030/M1050 |
- |
|
Flow range (N2equivalent) |
10,20,30,50,100,200,300,500SCCM
1,2,3,5SLM |
10,20SLM |
30,50SLM |
100LM |
|
Gases |
Various Gases (Please consult about corrosive gas) |
Air, N2, Ar, H2, CO2, O2, He |
Air, N2 |
|
Valve type |
NO : Normally Open (Excluding Mass Flow Meter) |
|
Flow rate control range |
5-100％ F.S (Excluding Mass Flow Meter) |
|
Accuracy |
±2％ F.S (Accuracy guaranteed between 15-35℃) |
|
Setting signal |
0.25-5VDC (excluding Mass Flow Meter) |
|
Output signal |
0-5VDC |
|
Repeatability |
±0.2％ F.S |
±0.5％ F.S |
|
Response |
≦6sec |
≦15sec |
|
Operating differential pressure |
50-300KPa |
200-300KPa |
|
Pressure resistance |
1MPa(G) |
|
Operating temperature |
5-50℃, ≦85％RH (Scope of accuracy guarantee : 15-35℃) |
|
Leak integrity |
1×10-7Pa･m3/sec He |
|
Mounting attitude |
Free |
|
Drive power source |
+15VDC：60mA、-15VDC：150mA |
|
Communication |
Analog : 0-5VDC |
|
Wetted surface material |
SUS316L, PTFE, Fluoro-Rubber |
|
Seal material |
Fluoro-Rubber |
|
Actuator system |
Thermal (excluding Mass Flow Meter) |
|
Surface treatment |
Machined finish |
|
Standard fitting |
1/4in.SWL (equivalent), One-touch fittings, ※ For other fitting, please contact us. |
|
Accessory |
User's manual, Written guarantee |

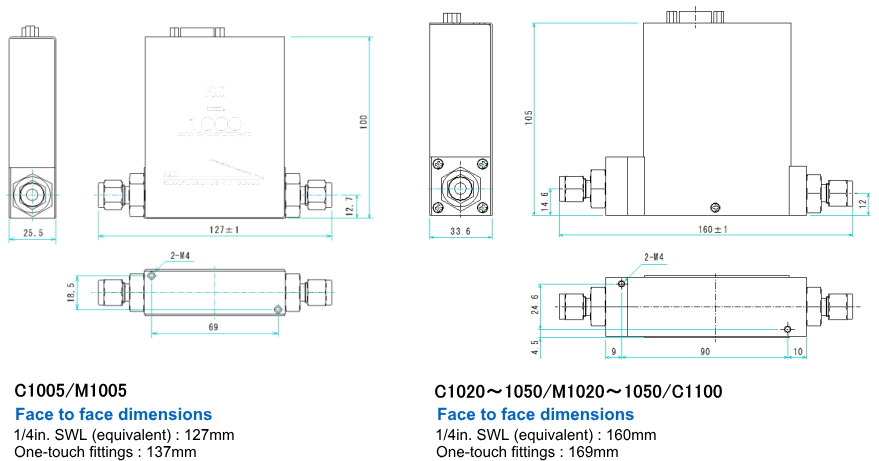

External Dimensions

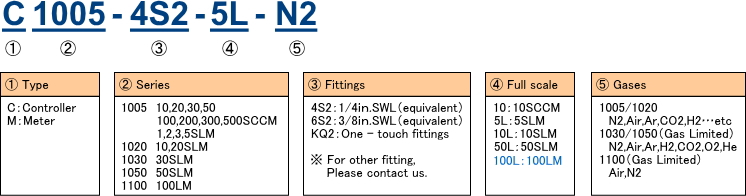

Ordering
Control power supply｜Product Catalog
|
● To control the mass flow controller, a control power supply and a signal cable are required.
● It is a control power supply unit that controls the mass flow controller.
● Can be used with AC85-260V.
● Setting signals and output signals can be displayed by switching the switches.
● There are 2 types of panel mount type and floor stand type.
|
|
■Which type would you like?■
|
|
【PA01PS (panel mount type)】
|
【PA01S (floor stand type)】
|
|
|
|
|
■Scaling display (Set as full scale)
|
|
▼ ［PA01PS］ Catarog Download
|
▼ ［PA01P］ Catarog Download
|
|
|
|
Signal cable
 |
Signal cable connecting mass flow controller and control power supply.
【standard】
① SC01 : 1m
② SC02 : 2m
③ SC03 : 3m
Other than the above, please contact us. |
|
